Steel Rubber Air Balloon Firestone W01-358-7095 GUOMAT NO.1B7095 Bellow No.1B 360

Product Categories

GUANGZHOU GUOMAT AIR SPRING CO. , LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Steel Rubber Air Balloon Firestone W013587095 GUOMAT NO1B7095 Bellow No1B 360
Brand: GUOMAT
Price: 1 USD

Brand Name : GUOMAT

Model Number : 1B7095

Certification : ISO/TS16949:2009

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T, Western Union,Paypal or Others

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : strong carton box or as customers need

Material : Rubber Steel

GUOMAT : 1B7095

Warranty : 1 Year

Weight : 5.0 kg

Other names : Rubber air balloon

Pressure Ability : 0.2-0.8 M Pa

Bellow No. : 1B7360

Firestone : W01-358-7095

Contact Now

Firestone W01-358-7095 GUOMAT NO. 1B7095 Bellow No. 1B 360 Rubber Air Balloon

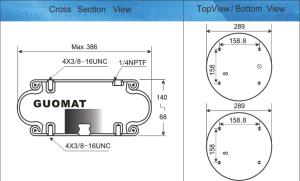

Specifications and Technical Data

GUOMAT Part Number:1B7095

Operating Temperature: 57Cº to -54Cº

Compressed Height: 80mm

Top Cover Plate Diameter: 289mm

Bottom Cover Plate Diameter: 289mm

Distance Gas Hole Between Nut 79 mm

Top Cover Plate Screw (Nut) Tooth :4pcX3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth : 4pcX3/8-16UNC

The Working Stroke : MAX 140 mm to MIN 68 mm

Gas Hole / Air inlet : 1/4NPTF

Maximum Diameter @ 100 PSIG (mm)	386	Manufacturer Part Number	W01-358-7095
Maximum Height (mm)	140	Manufacturer	Firestone Industrial
Maximum Stroke (mm)	72	40 psig (pounds)	3820
Minimum Usable Height (mm)	68	60 psig (pounds)	5900
1 Inch (pounds)	10860	80 psig (pounds)	7990
3 Inch (pounds)	8800	Natural Frequency (@80 psig) (cpm)	133
Maximum Stroke (pounds)	5500	400 CPM %	87.7
Equivalent High Strength Style Number	128-1	800 CPM %	97.2
Applicable Technigram?	105	1500 CPM %	99.2
Material	2-Ply Standard Cord
Bead plate Type	2
Blind Nut Centers (mm)	158.8
Design Height	100
