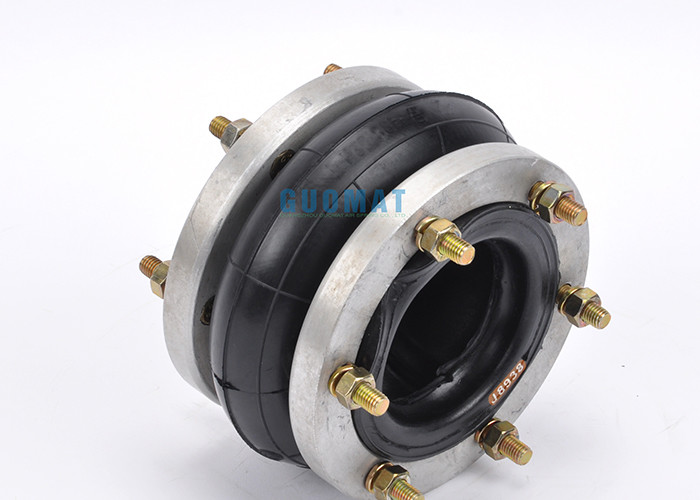

Universal Air Bags Air Suspension Kit Bag Shock Absorber With Open Flange
GUOMAT Part Number 188102H-1 Technical Parameter
1.Top Cover Plate Diameter:175mm
2.Bottom Cover Plate Diameter:175mm
3.Nut(Screw) of the Top Cover Plate:6pcsxM10
4.Nut(Screw) of the Bottom Cover Plate:6pcsxM10
5 .Center Distance Between Nut:141mm
6.Rubber Bellows:MAX Diameter 210mm
7.The Working Stroke:MAX 115mm to MIN 52mm
8.The Maximum Height:115mm
9.The Minimun Height:52mm
8.Stroke Height:63mm
10.Spring Natural Height:102mm
11.Part Weight:2.25KG
Air Spring Technical Parameter Data
| Inflation Pressure | 0.2Mpa | 0.3Mpa | 0.4Mpa | 0.5Mpa |
| Installation Height(mm) | --- | --- | --- | --- |
| 52 | 540 | 799 | 1072 | 1331 |
| 65 | 466 | 690 | 931 | 1176 |
| 78 | 383 | 570 | 774 | 999 |
| 91 | 290 | 451 | 609 | 799 |
| 102 | 208 | 328 | 456 | 587 |
| 117 | 141 | 233 | 320 | 434 |
| 130 | 44 | 96 | 163 | 229 |
| Vertical Stiffness(Kg/cm) | 109 | 156 | 191 | 239 |
| Natural frequency(cpm) | 3.62 | 3.45 | 3.24 | 3.19 |
| 217 | 207 | 194 | 191 |
| Inflation Pressure | 0.6Mpa | 0.7Mpa | 0.8Mpa | 0.7Mpa Volume (dm3) |
| Installation Height(mm) | --- | --- | --- | --- |
| 52 | 1590 | 1871 | 2137 | 0.64 |
| 65 | 1420 | 1680 | 1926 | 1.04 |
| 78 | 1214 | 1450 | 1664 | 1.36 |
| 91 | 979 | 1175 | 1352 | 1.60 |
| 102 | 726 | 865 | 1008 | 1.73 |
| 117 | 533 | 647 | 757 | 1.86 |
| 130 | 296 | 370 | 451 | 1.99 |
| Vertical Stiffness(Kg/cm) | 276 | 320 | 366 | |
| Natural frequency(cpm) | 3.09 | 3.05 | 3.01 | |
| 185 | 183 | 180 | |
Routine maintenance of air springs
Air spring maintenance can dust and clean the surface once a year, but if problems are found, such as air leakage at the air duct joints, they need to be dealt with in time. If there is a slow leak at the air tube fitting, it may reduce the damping effect. The continuous low vibration isolation effect may affect the working accuracy of the equipment.
The best use environment for air springs is indoor use. The environment is suitable for low dust, low humidity and low oil smoke. In this environment, the air spring will have a better service life. Use in harsh environments will accelerate the aging of the air spring film. The above is an introduction to the daily maintenance of the air spring. The service life of ordinary air springs is generally very long.
