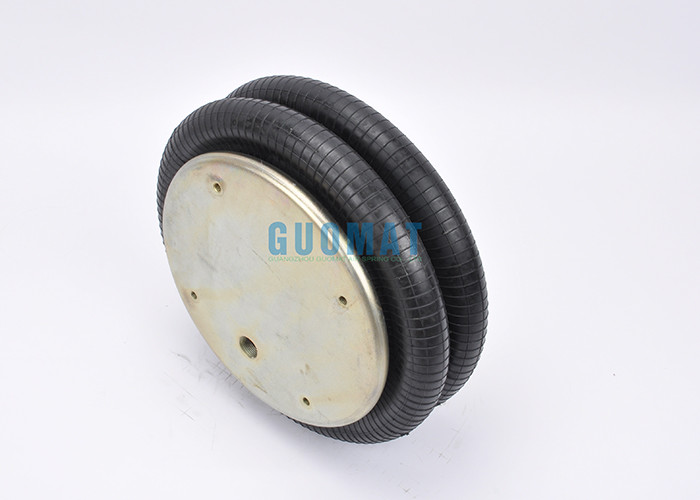

FD 530-22 CI Double Industrial Air Bags Convolution Air Spring Actuator
Technical Parameters of
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4 pcs X M10X1.75
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M10X1.75
Screw Center Distance of Bottom Cover Plate : 159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4NPT , Combination Stud/Air Inlet Stud
❸ Cover Plate
Top Cover Plate Diameter (Width): 315 mm
Bottom Cover Plate Diameter (Width): 315 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter : 395 mm
Maximum Height: 300 mm
Working Stroke : 90 mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Type
Order No.
Rubber bellows only
60406
with crimped plates, G1/4 air inlet
A = 79.4 mm excentrical
61362
with crimped plates, G3/4 air inlet
A = 79.4 mm excentrical
66512
with crimped plates, G1 air inlet
A = 79.4 mm excentrical
2682075000
Overall weight 6.9 kg
OEM Original Equipment Manufacturer:
GUOMAT NO.:2B53022
Contitech No:FD530-22 311
Contitech No:FD530 22 311
Contitech No: Also known as: 64545,
Contitech No:FD530-22321
Comparable: W013587136,
W01-358-7136,
WO13587136,
WO1-358-7136
FIRESTONE:21T2 W01-358-7135
FIRESTONE:21T2 W01 358 7135
FIRESTONE:21T2 W013587135
GOODYEAR:2B14-360
GOODYEAR:2B14360
GOODYEAR:2B14 360
GOODYEAR::556 22 8 554
GOODYEAR::556-22-8-554
GOODYEAR::556228554
Vibration isolation – dynamic characteristic values Design height H: recommended 250mm, minimum 225mm |
| | | | | | | | |
| | | | | | | | |
| | | | | | | | |
| | | | | | | | |
Pneumatic application – static characteristic values Force F [kN] |
| | | | | | | | |
| | | | | | | | | |
| | | | | | | | |
| | | | | | | | |
| | | | | | | | |
| | | | | | | | |
other kinds of guomat air spring refer to FD 530-22:
| GUOMAT NO. | Reference | Order NO. | Force (lbs) | Max OD (in) | Design height(in) | Height | Narural frequ.[cpm] |
| 80 psi | 100 psi | Min | MAX |
| FD 530 22 311 | FD 530-22 311 | 161326 | 6530 | 8170 | 15 | 9.8 | 3.3 | 12.2 | 108 |
| FD 530 22 316 | FD 530-22 316 | 161327 | 6530 | 8170 | 15 | 9.8 | 4.1 | 12.2 | 108 |
| FD 530 22 321 | FD 530-22 321 | 161328 | 6530 | 8170 | 15 | 9.8 | 4.1 | 12.2 | 108 |
| FD 530 22 342 | FD 530-22 342 | 161329 | 6530 | 8170 | 15 | 9.8 | 4.1 | 12.2 | 108 |
| FD 530 22 345 | FD 530-22 345 | 161330 | 6530 | 8170 | 15 | 9.8 | 4.1 | 12.2 | 108 |
| FD 530 22 374 | FD 530-22 374 | 161331 | 6530 | 8170 | 15 | 9.8 | 3.3 | 12.2 | 108 |
Note:
The installation of components or kits should only be carried out by personnel who are experienced in the installation and correct operation of vehicle systems. The person installing a component or kit is also responsible for determining the suitability of the component or kit for a particular application.
Manufacturers and distributors are not responsible for misuse of these products. Make sure you use it according to the instructions and make sure the vehicle or equipment you are using is not suitable as different vehicles and equipment vary widely. Manufacturers and distributors are not responsible for the products you buy here.
