Goodyear 1B8-550 Single Cnvoluted Type Air Spring For Equipment Air Spring

Brand Name : GUOMAT

Model Number : 1B8X4

Certification : ISO/TS16949:2009

Place of Origin : Guangzhou,China

MOQ : 5pcs

Price : USD49.9-59.9/PC

Payment Terms : L/C, T/T, Western Union Or Others

Supply Ability : 1000PCS/Week

Delivery Time : 3-7 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Condition : Brand-New

Sample : Available

Function : Reduce Shock

Transport Package : Cartons

Part : Air Spring

Type : Gas-Filled

Goodyear : 1B8-550

Contitech : FS120-10

Contact Now

Goodyear 1B8-550 Single Cnvoluted Type Air Spring For Equipment Air Spring

Product Description
Part Number 1B8X4
Working Temperature

-40°C bis +70°C
OEM NO. W01-358-7564/1B8-550/FS120-10

Failure testing

≥3 millions
Main product we sell Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump

Cross Reference

Firestone W01-358-7564 / W01 358 7564 / W013587564
Goodyear 1B8-550 / 1B 8-550
Contitech FS120-10 / FS 120-10


Air bag is a rubber and fabric bladder that holds air pressure to support a loat and isolate passengers and cargo from the shock of motion caused by road irregularities.

As the air pressure increases,the air spring can support more loat while the spring rate increases.The larger the air spring,the greater the maximum load it can support.


1B8X4 Industrlal Air Replacement Parts Technical Data

  • Top Cover Plate Diameter:135mm
  • Bottom Cover Plate Diameter:135mm
  • Screw Center Distance of Top Cover Plate:70mm
  • Screw Center Distance of Bottom Cover Plate:70mm
  • Air Hole/Air Inlet/Gas hole:1/4 NPTF

  • Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC

  • Bottom Cover Plate Screw(Nut) Tooth:2X3/8-16UNC

  • Rubber Bellows MAX.Diameter:MAX.230

  • The Working Stroke:50mm~140mm

Applications

  • Industrial actuator
  • Vibration isolator
  • Press machines
  • Conveyors
  • Lifts
  • Packaging machines

Features

  • Fabric-reinforced rubber
  • Flexible media
  • Provides linear and angular motion
  • Reduces harmful effects of vibration

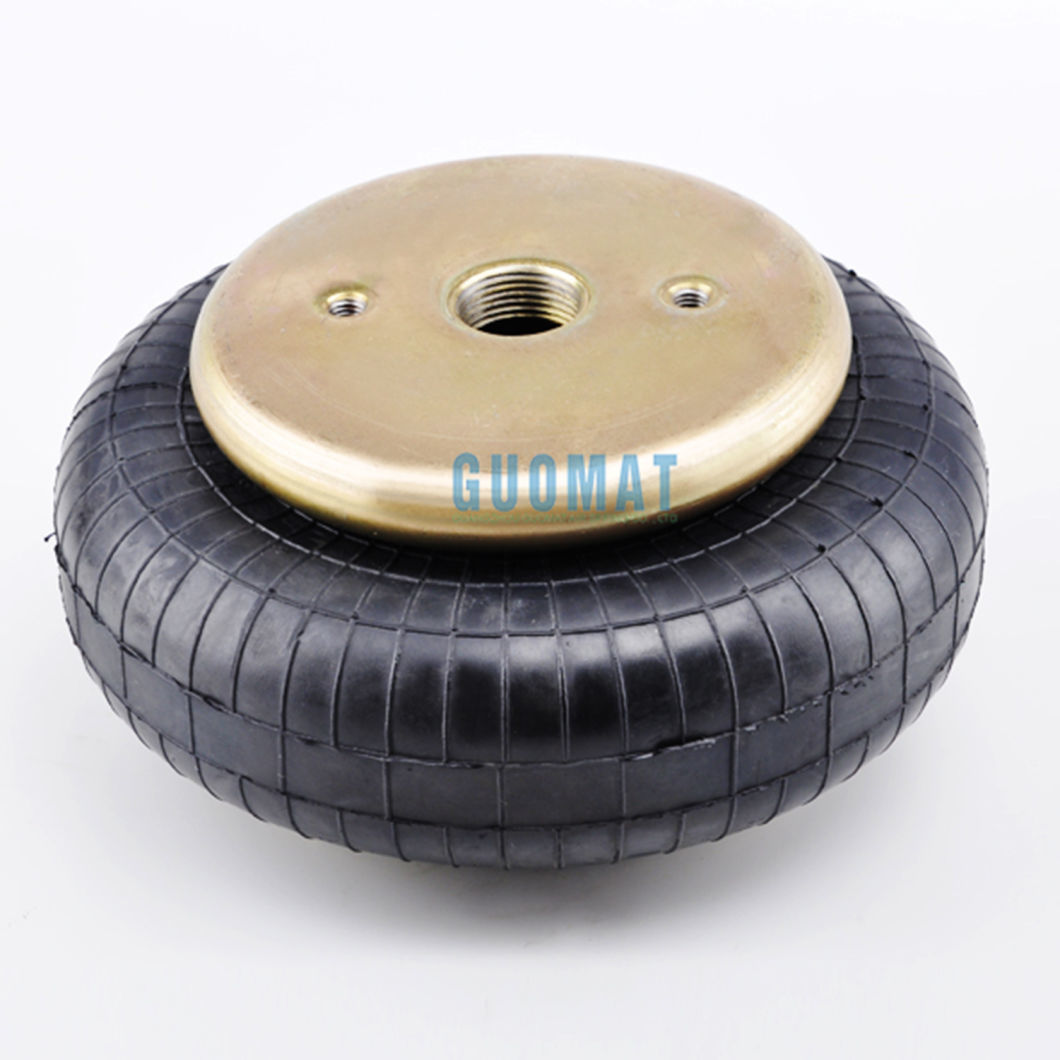

Detailed Photos

Goodyear 1B8-550 Single Cnvoluted Type Air Spring For Equipment Air SpringGoodyear 1B8-550 Single Cnvoluted Type Air Spring For Equipment Air SpringGoodyear 1B8-550 Single Cnvoluted Type Air Spring For Equipment Air SpringGoodyear 1B8-550 Single Cnvoluted Type Air Spring For Equipment Air SpringGoodyear 1B8-550 Single Cnvoluted Type Air Spring For Equipment Air Spring

FAQ
1. Q: How to order ?
A: Step 1, please tell us what model and quantity you need;
Step 2,then we will make a PI for you to confirm the order details;
Step 3,when we confirmed everything ,you can arrange the payment;
Step 4,finally we deliver the goods within the stipulated time.
2. Q: When will make delivery ?
A: Delivery time is 2-8woring days.
3. After-sales service
1 year warranty for all kinds of products;
If you have any questions after receiving the goods,please feel free to contact me,as an experienced manufacturer ,you can rest assured of the quality and after-sales service.
4. Payment
T/T,Western Union,L/C
5. Transportation
Transportation by DHL,UPS,EMS,Fedex,Air freight,Sea freight.
